| SYCHRONISE PANEL OR OUTPUT PANEL | |||
| ITEM | MODEL | BREAKER | |
| SYCHRONISE PANEL | |||
| Using DSE8610; DEIF AGC150, or ComAp IC-NT auto parallel control system, one panel mounted on each genset, easy for single running and synchronizing. | |||
| Output Current | ABB Breaker 3P | CHNT Breaker 3P | |
| ≤400A | ABB T5N-400P/MOE | ||
| 630A | ABB T5N-630P/MOE | ||
| 800A | ABB T6N-800P/MOE | ||
| 1000A | ABB T7S-1000A/(M220/T7M) MOE | ||
| 1000A | ABB XIB 1000 R1000 ACB | ||
| 1250A | ABB T7S-1250A/(M220/T7M) MOE | ||
| 1600A | ABB T7S-1600A/(M220/T7M) MOE | ||
| 2000A | ABB E2B 2000/R2000 ACB | NXA20N20-MF3-AC230+SHUNT TRIP ACB | |
| 2500A | ABB E2B 2500/R2500 ACB | NXA32N25-MF3-AC230+SHUNT TRIP ACB | |
| 3200A | ABB E4N 3200/R3200 ACB | NXA32N32-MF3-AC230+SHUNT TRIP ACB | |
| 4000A | ABB E4S 4000/R4000 ACB | NXA40N40-MF3-AC230+SHUNT TRIP ACB | |
| 5000A | ABB E6H 5000/R5000 ACB | NXA63H50-MF3-AC230+SHUNT TRIP ACB | |
| OUTPUT PANEL | |||
| Output Current | ABB Breaker 3P | CHNT Breaker 3P | |
| 2000A | ABB E2B 2000/R2000 ACB | NXA20N20-MF3-AC230+SHUNT TRIP ACB | |
| 2500A | ABB E2B 2500/R2500 ACB | NXA32N25-MF3-AC230+SHUNT TRIP ACB | |
| 3200A | ABB E4N 3200/R3200 ACB | NXA32N32-MF3-AC230+SHUNT TRIP ACB | |
| 4000A | ABB E4S 4000/R4000 ACB | NXA40N40-MF3-AC230+SHUNT TRIP ACB | |
| 5000A | ABB E6H 5000/R5000 ACB | NXA63H50-MF3-AC230+SHUNT TRIP ACB | |
| * BREAKERS ALSO AVAIBLE IN 4 POLE | |||
| SYCHRONISE/PARALLEL PANEL | |||
|
Using DEIF AGC150, DSE8610 or ComAp IC-NT auto parallel control system, one panel mounted on each genset, easy for single runging and synchronizing. |
|||

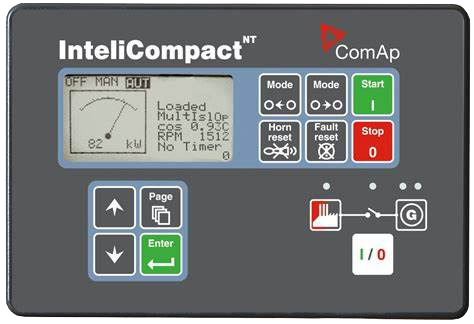

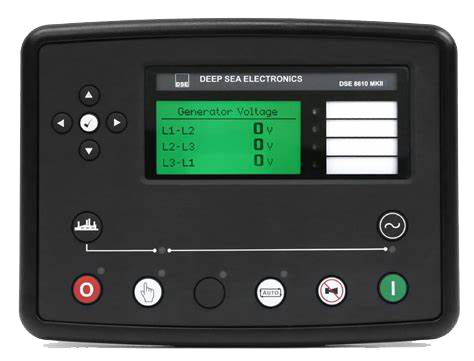

| SYCHRONISE CONTROLLER | DEEPSEA DSE8610 |
|
|

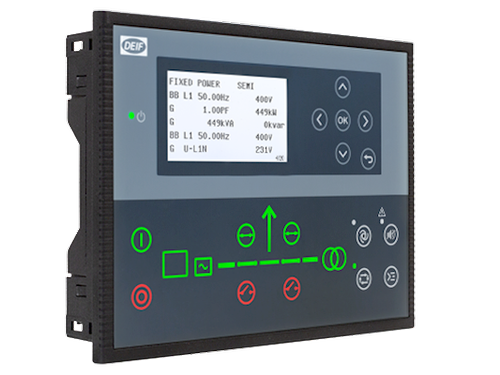

| DEIF AGC150 |
|
||
| COMAP IC-NT |
|
||
|
Output Current |
ABB BREAKER 3P /4P | CHINT BREAKER 3P /4P | |
| Breaker Model | Breaker Model | ||
| ≤400A | ABB T5N-400P/MOE MOTORISED | ||
| 630A | ABB T5N-630P/MOE MOTORISED | ||
| 800A | ABB T6N-800P/MOE MOTORISED | ||
| 1000A | ABB T7S-1000A/MOTORISED(M220/T7M) | ||
| 1000A | ABB XIB 1000 R1000 ACB | ||
| 1250A | ABB T7S-1250A/MOTORISED (M220/T7M) | ||
| 1600A | ABB T7S-1600A/ MOTORISED (M220/T7M) | ||
| 2000A | ABB E2B 2000/R2000 ACB | NXA20N20-MF3-AC230+SHUNT TRIP ACB | |
| 2500A | ABB E2B 2500/R2500 ACB | NXA32N25-MF3-AC230+SHUNT TRIP ACB | |
| 3200A | ABB E4N 3200/R3200 ACB | NXA32N32-MF3-AC230+SHUNT TRIP ACB | |
| 4000A | ABB E4S 4000/R4000 ACB | NXA40N40-MF3-AC230+SHUNT TRIP ACB | |
| 5000A | ABB E6H 5000/R5000 ACB | NXA63H50-MF3-AC230+SHUNT TRIP ACB | |
